Transistortester GM328
![]() |
ESR meter, frequency counter, square wave generator

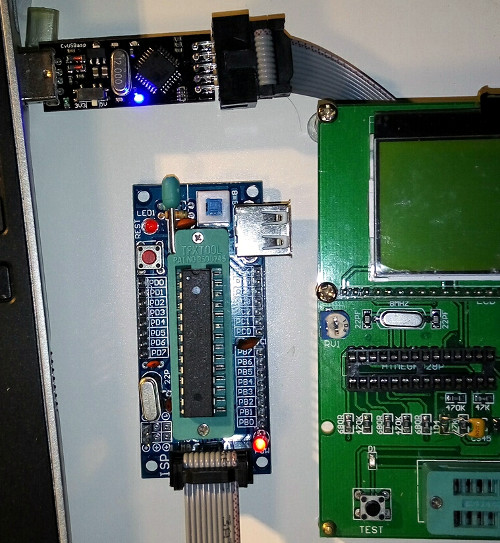

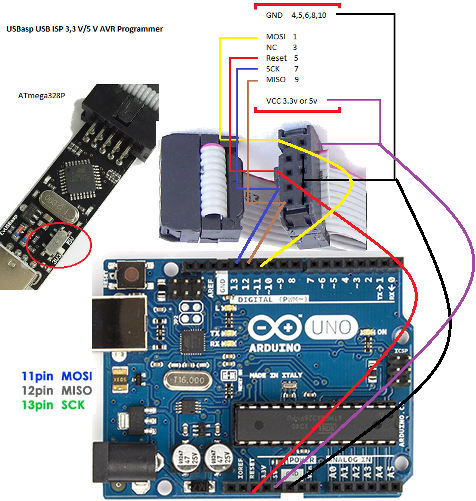

ATMega328P chip, 8MHz external crystal, USBasp USB ISP 3,3 V/5 V AVR Programmer (Aliexpress) USBasp driver : http://www.fischl.de/usbasp/ |
For windows 8 to 10 version, you need to disable the Digital Signature -Press and Hold Shit key and Click on Restart. -Click Troubleshoot -Click Advanced Option -Click Start up Settings -Click Restart -Select the Option Disable Driver signature enforcement (Pressing F7) -Reboot -Device manager, Open “Other devices” and right click on Usbasp and select Update driver software |
|
![]() |
– https://www.mikrocontroller.net/svn/list – SVN-Repositories – https://www.mikrocontroller.net/svnbrowser/transistortester/ – Directories Upgrade firmware: SVN svn://mikrocontroller.net/transistortester |
r read the specified device memory and write to the specified file
w read the specified file and write it to the specified device memory
Die oberen Bits der Efuse werden im ATmega328 nicht benutzt.
Zurückgelesen werden ‘1’ Werte für die unbenutzten Bits.
Manche Programmiersoftware maskiert die unbenutzten Bits aber aus. So wird mit der Maske 0x07 aus dem 0xfc eine 0xf04.
For writing only Flash and eeprom:
avrdude –c usbasp –p m328p –u -U flash:w:"TransistorTester.hex":a -U eeprom:w:"TransistorTester.eep":a
For writing only Fuses (L=F7, H=D9, E=04):
avrdude -c usbasp -p m328p -U lfuse:w:0xF7:m -U hfuse:w:0xD9:m -U efuse:w:0x04:m
Erase chip:
avrdude -p m328p -c usbasp -e -u
Backup Flash:
Read flash memory to a file “flash_read.hex”:
avrdude -c usbasp -p m328p -U flash:r:flash_read.hex:i
Read eeprom memory to a file “eeprom_read.hex”:
avrdude -c usbasp -p m328p -U eeprom:r:flash_read.hex:i
Test purpose:
avrdude -p m328p -P usb -c usbasp -U flash:w:Blink.hex
Arduino bootloader
Tools->Board->Arduino UNO (or whatever Arduino board you are programming)
Tools->Programmer->USBasp
Tools->Burn Bootloader
or
The bootloader is: c:\myAVR\Arduino-1.8.1\hardware\arduino\avr\bootloaders\optiboot\
uno.name=Arduino Uno
uno.bootloader.path=optiboot
uno.bootloader.file=optiboot_atmega328.hex
uno.build.core=arduino
avrdude -c usbasp -p m328p -u -U flash:w:"optiboot_atmega328.hex":a
